Colour: | Gloss meadow green with matte black |
Frame: | 6061 alloy, Single Chainring (SCR) aluminium front triangle with tapered head tube, ISCG 2 guide mounts, alloy symmetrical SCR rear triangle, Shape.it Link and 148mm Boost dropouts |
Fork: | RockShox Lyrik Ultimate RC2 29in, 160mm travel, 44mm offset, DebonAir+ with ButterCups, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Ultimate |

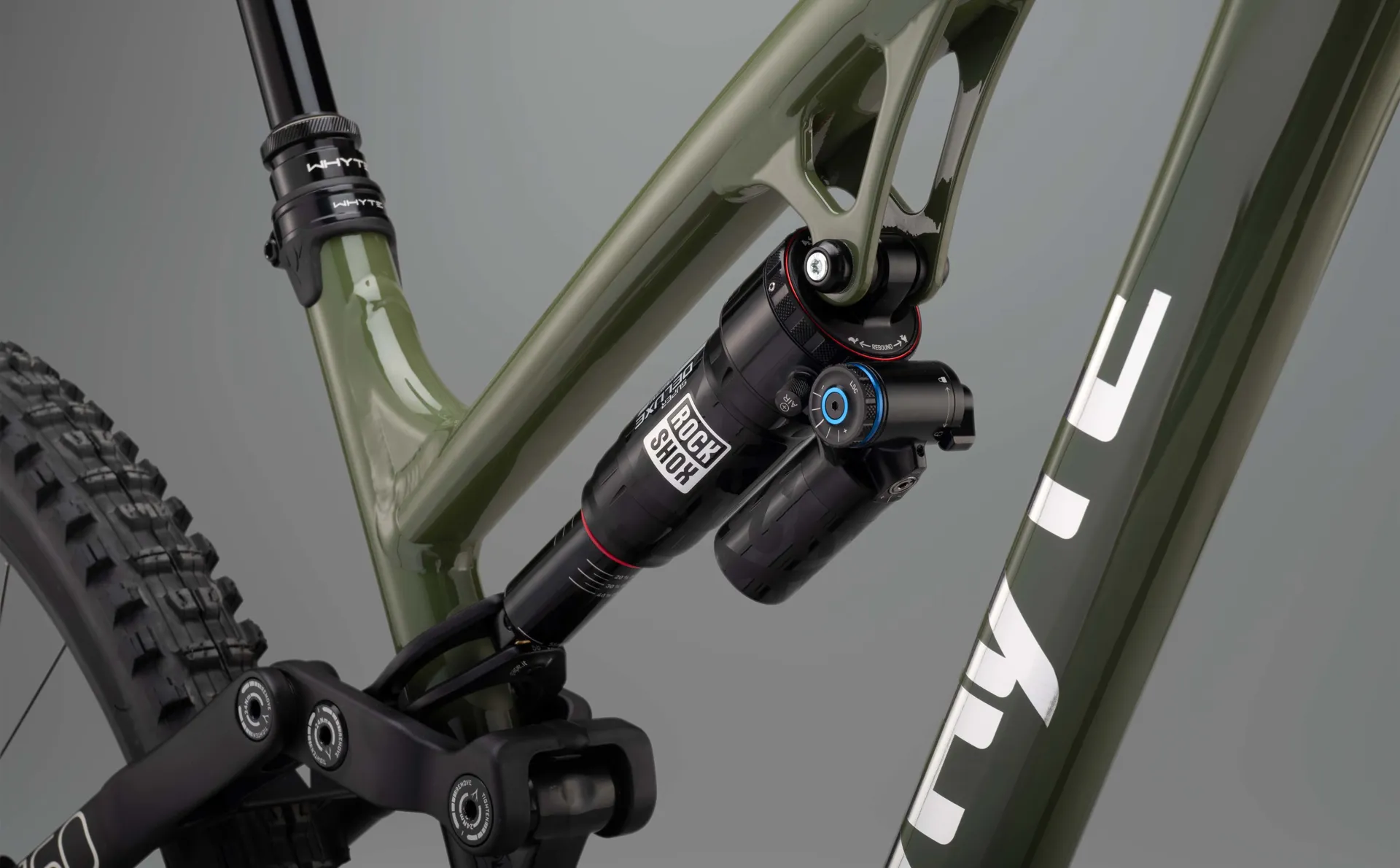

Rear shock: | RockShox Super Deluxe Ultimate RC2T, DebonAir+, Fast Black coating, adjustable rebound, two position compression adjustment, 210 x 55mm, custom tuned for Whyte |
Headset: | FSA No. 57E Orbit ZS, 1 1/2in lower and 1 1/8in upper sealed cartridge bearings |
Rear hub: | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree Micro Engagement, four pawl, XD Driver, 32 hole |
Front hub: | Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 31mm torque caps, 32 hole |
Spokes: | DT Swiss New Champion 2.0mm, black stainless, brass nipples |
Rims: | Race Face AR-30, offset, 30mm wide, sleeved joint, tubeless ready, 32 hole |
Tyre: | Maxxis Assegai TR 29in x 2.5in 60TPI, EXO sidewall protection, 3C Maxx Terra, front; Maxxis Minion DHR II TR 29in x 2.4in WT 120TPI, EXO+ sidewall protection, Dual Compound, rear |
Shift levers: | SRAM GX Eagle Trigger MMX, 12 speed |
Front mech: | N/A |

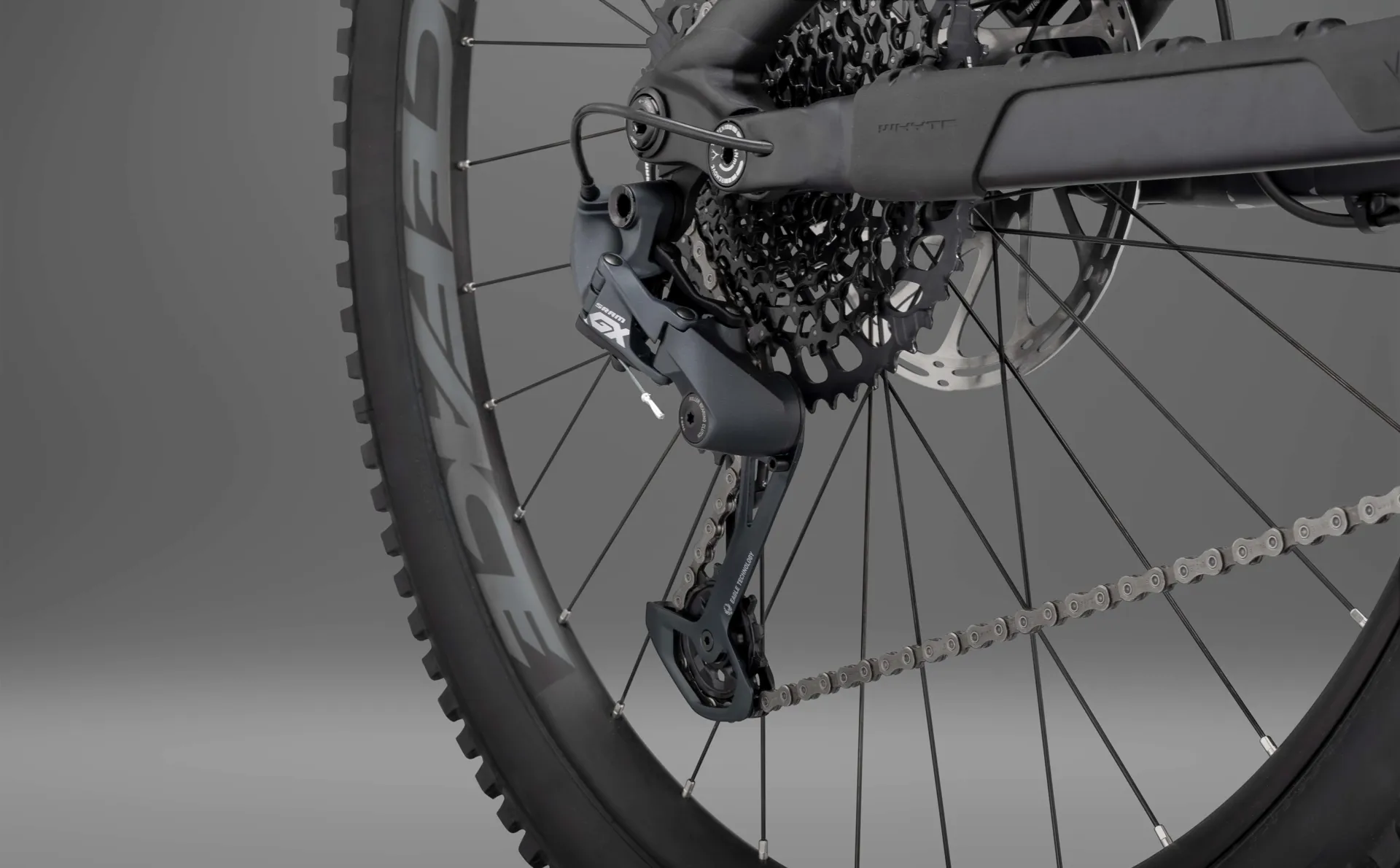

Rear mech: | SRAM GX Eagle, 12 speed |
Cassette: | SRAM XG-1275 Eagle, 10-52T, 12 speed |
Chain: | SRAM GX, 12 speed |

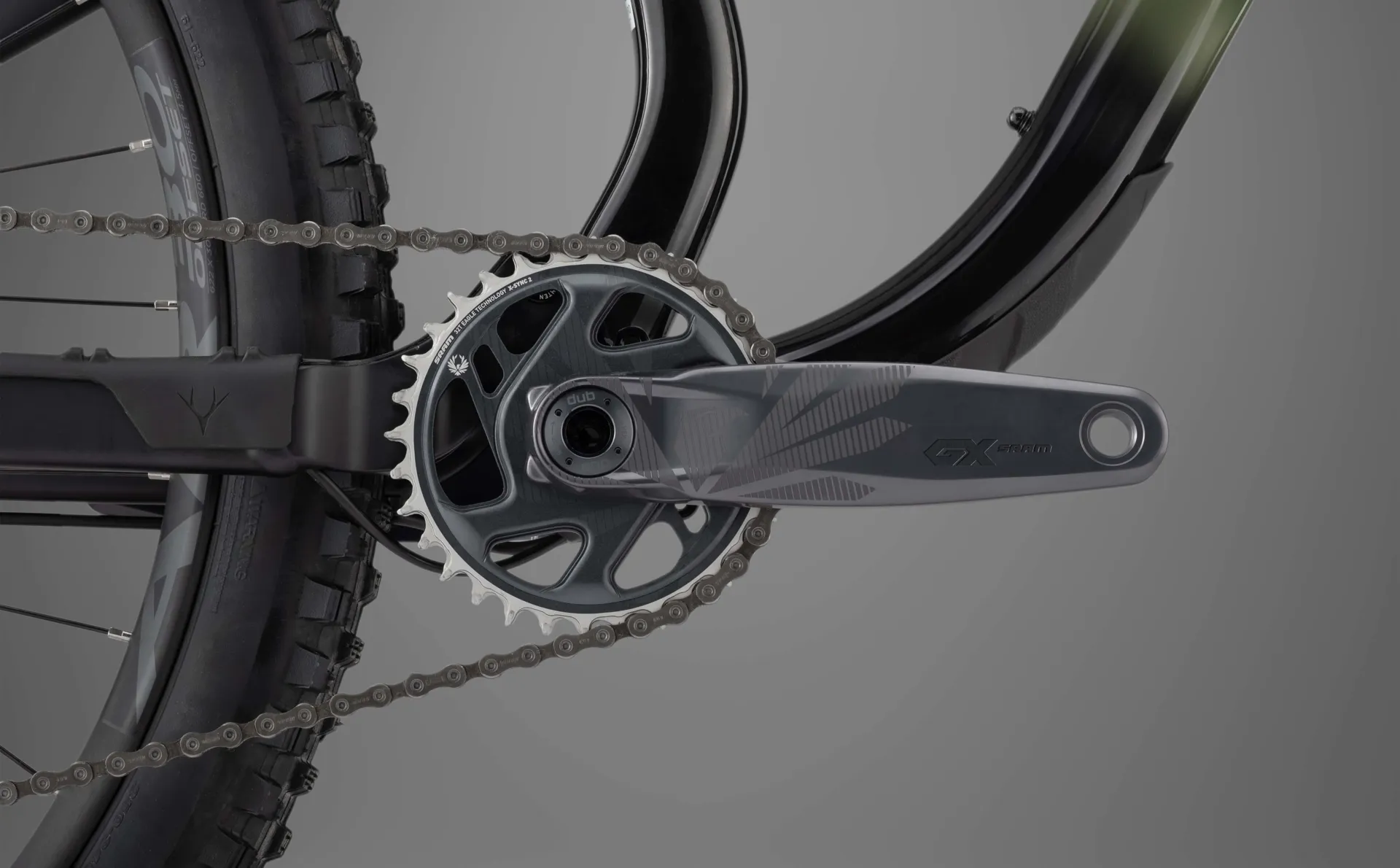

Crankset: | SRAM GX, Direct Mount 32T chainring, DUB, 165mm |
Bottom bracket: | SRAM DUB, BSA, 73mm |
Seatpost: | Whyte drop.it Post II Adjust, 30.9mm (sizes M/L 140-170mm travel; size XL 170-200mm travel),MMX remote lever |
Saddle: | Whyte Custom, dual density, triple panel design |
Handlebar: | Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide |
Stem: | Whyte Gravity, 35mm extension, 35mm bar bore |
Grips: | Whyte Enduro lock-on |

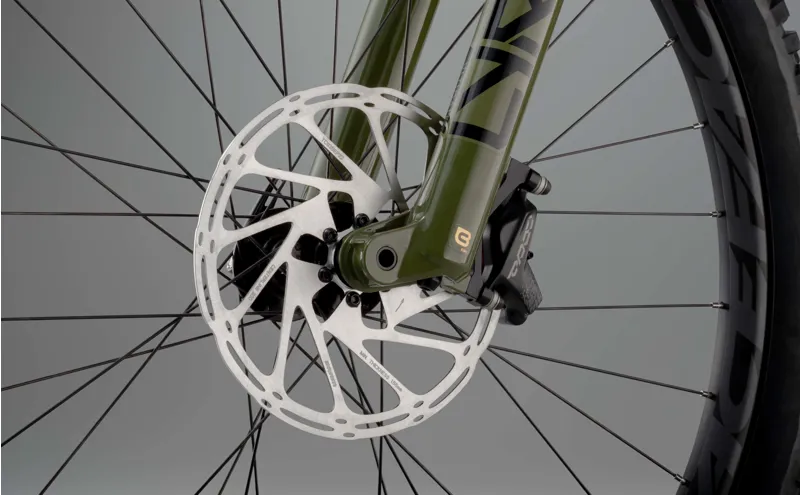

Brakes front: | SRAM Code R, four piston hydraulic, sintered metal pads, 200mm diameter disc rotor |
Brakes rear: | SRAM Code R, four piston hydraulic, sintered metal pads, 200mm diameter disc rotor |
Brake levers: | SRAM Code R, MMX |
Pedals: | Fibre reinforced composite platform |
Weight: | TBC |
