The all new Merida Big Trail 400 29er hardtail mountain bike is your ticket into trail riding. Dropper post, 1 x gearing and modern geometry for under £1000.
The all new Merida Big Trail 400 29er hardtail mountain bike is your ticket into trail riding. Dropper post, 1 x gearing and modern geometry for under £1000.
Merida

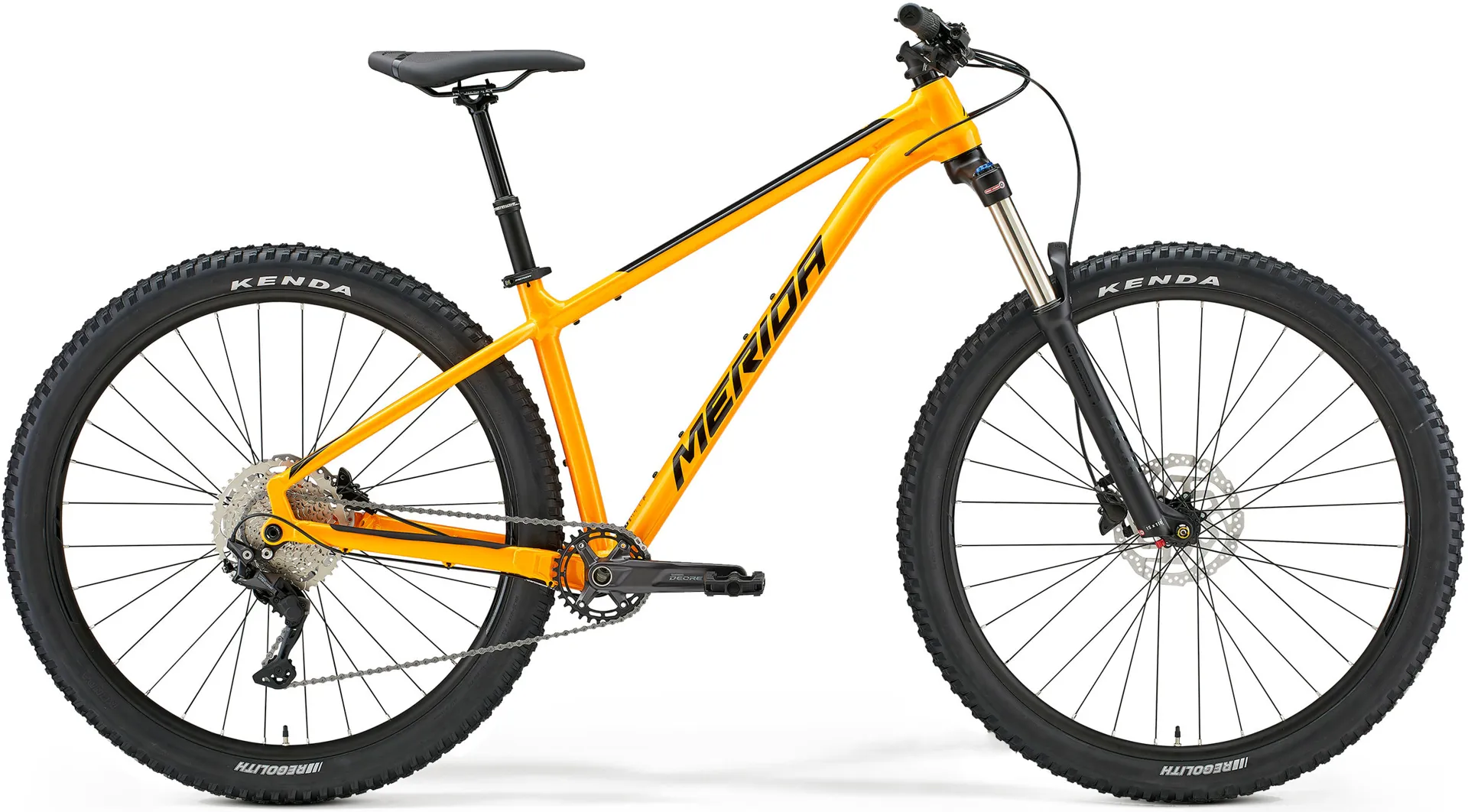

2021 Merida Big Trail 400 Hardtail Mountain Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2021 Merida Big Trail 400 Hardtail Mountain Bike

Season:2021

Brand:Merida

Code:21-BT400

Homegrown is best!!

One of the best things about Merida is that despite the massive scale of our manufacturing we talk directly to the key people.

In 2019 a few UK customers met our MTB Product Manager Rey and over a few beers they defined their wish list for a perfect UK bike - a trail focussed 29er with 140mm fork, 1 x transmission, Boost standard bolt through axles and a dropper post.

Then it was over to Rey, a very handy rider to develop the ideas into a workable bike.

The slack enduro inspired 65.5° head angle and 140mm fork delivers a fun confidence inspiring bike. The long reach and short seat tube gives plenty of space to manoeuvre on the bike and a really low stand over height. We use long dropper posts to achieve the short seat tube.

An advantage of the geometry is depending on your riding style, most sizes work for most body sizes. The only question is if you want to go crazy fast or super agile. For speed take the longer size, for agility take a shorter size.

The 400 combines our new frame with the ever reliable SR XCR34 air fork and a 1 x 10 Shimano Deore drivetrain.

Technical Information
Frame: TFS - 6061 series double butted and technoformed aluminium tubing with smooth welding. Modern trail bike geometry. Class leading, premium technologies such as Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing
Rear Shock: N/a
Fork: Suntour XCR34 LOR; Air; 140mm travel; Tapered; lockout; 51mm fork offset
Headset: Merida M2345
Stem: Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 50 mm all sizes
Handlebar: Merida Expert CC; aluminium; 740mm wide; 10mm rise
Grips: Merida Comp EC
Brake Type: Hydraulic disc
Brake Lever: Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
Front Brake: Shimano BR-MT200; 2 piston hydraulic disc brake (or Tektro HD-M275) with Shimano RT10; 180mm rotor
Rear Brake: Shimano BR-MT200; 2 piston hydraulic disc brake (or Tektro HD-M275) with Shimano RT10; 180mm rotor
Front Tyre: Kenda Regolith; 29" x 2.4"; wire bead
Rear Tyre: Kenda Regolith; 29" x 2.4"; wire bead
Wheel Size: 29"
Rims: Merida Comp TR; 29mm inner rim width; Material: aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes: Black stainless
Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Centerlock
Rear Hub: Shimano MT400-B; 148x12mm; 32 spokes; Centerlockincluding removable lever with 6mm Allen key
Speeds: 10
Front Derailleur: N/a
Rear Derailleur: Shimano Deore M5120 Shadow+
Shift Levers: Shimano Deore M4100
Chain: KMC X10
Cassette: KMC X10
Chainset: Shimano Deore M5100; 32 teeth chainwheel with 170mm - S, 175mm - M up length crank
Bottom Bracket: Shimano Deore
Pedals: VP Components, VPE-891
Saddle: Merida Comp CC
Seat Post: Merida Comp TR; 30.9mm diameter; in-line; S: 125mm drop - M/L/XL: 150mm drop with Shimano SL -MT500-IL lever
Motor: N/a
Battery Capacity: N/a
eBike Display: N/a
Sizing Information
SMLXL
4'11" - 5'5"5'4" - 5'10"5'9" - 6'3"6'2" - 6'8"
150 - 165cm163 - 178cm175 - 191cm188 - 203cm
