The Whyte E-160 RSX 29er is an award-winning all-round trail e-mtb. Bosch Performance CX motor, SRAM GX T-Type AXS drivetrain, Fox Float 38 Performance Elite.
The Whyte E-160 RSX 29er is an award-winning all-round trail e-mtb. Bosch Performance CX motor, SRAM GX T-Type AXS drivetrain, Fox Float 38 Performance Elite.
Whyte

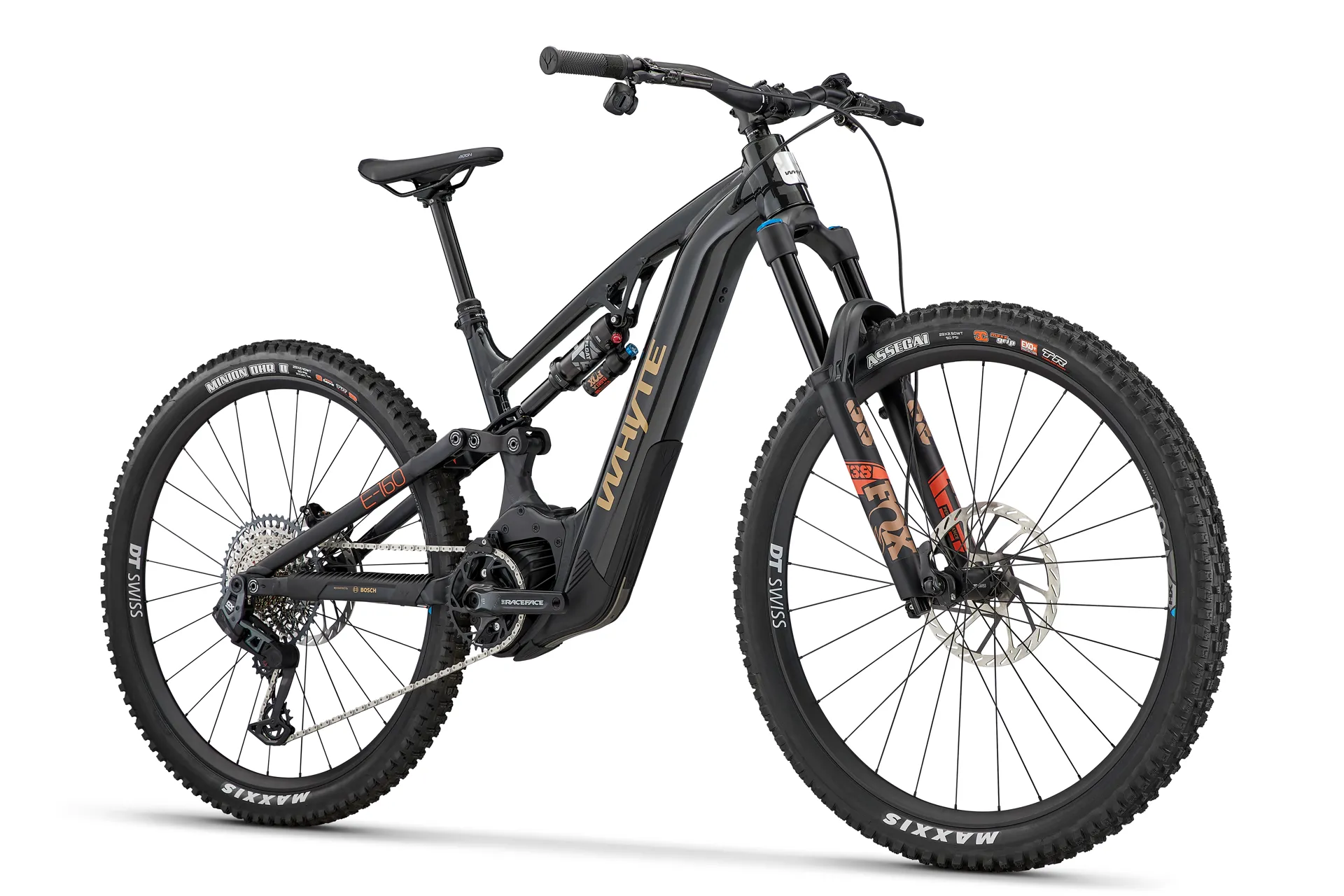

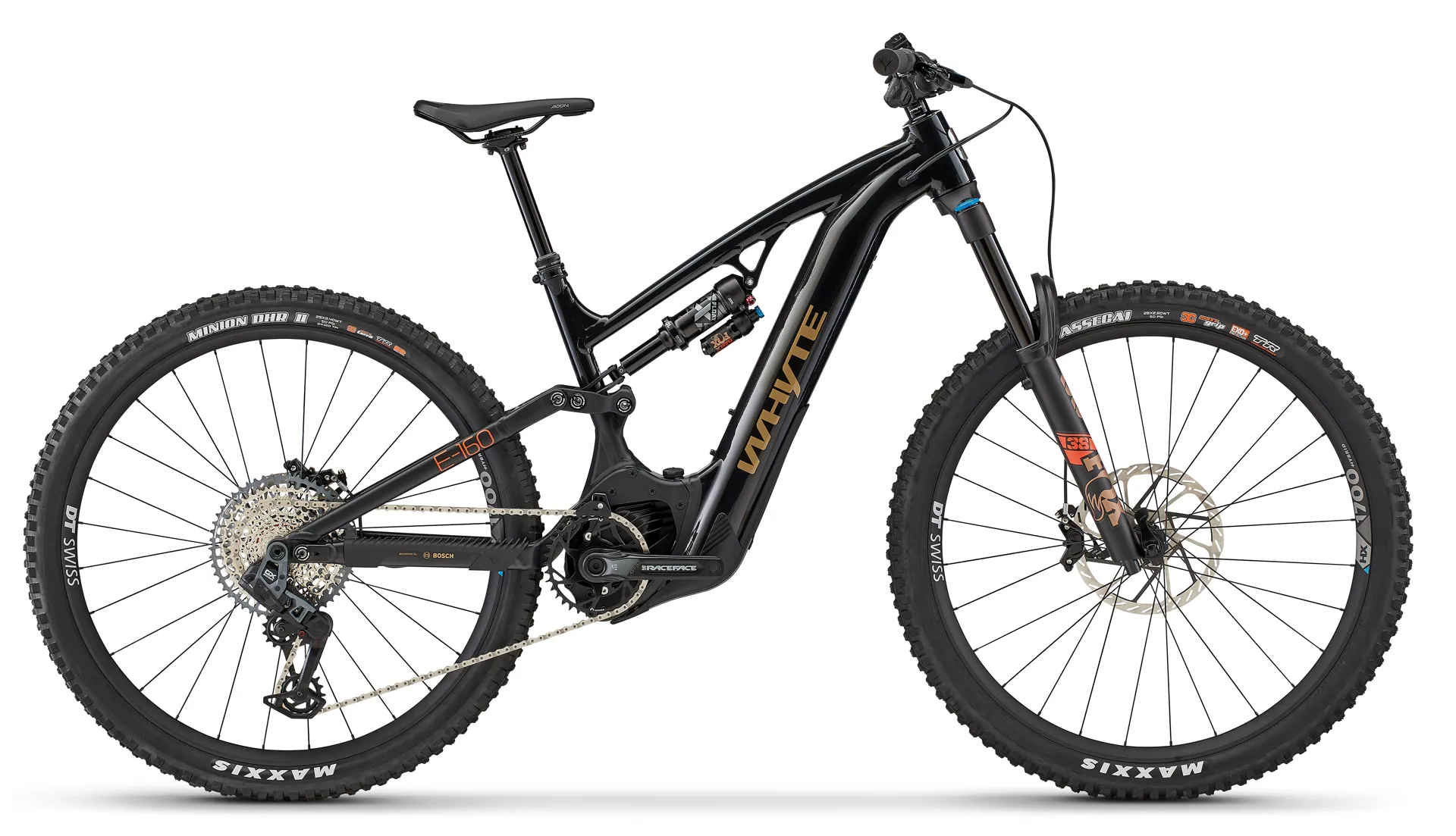

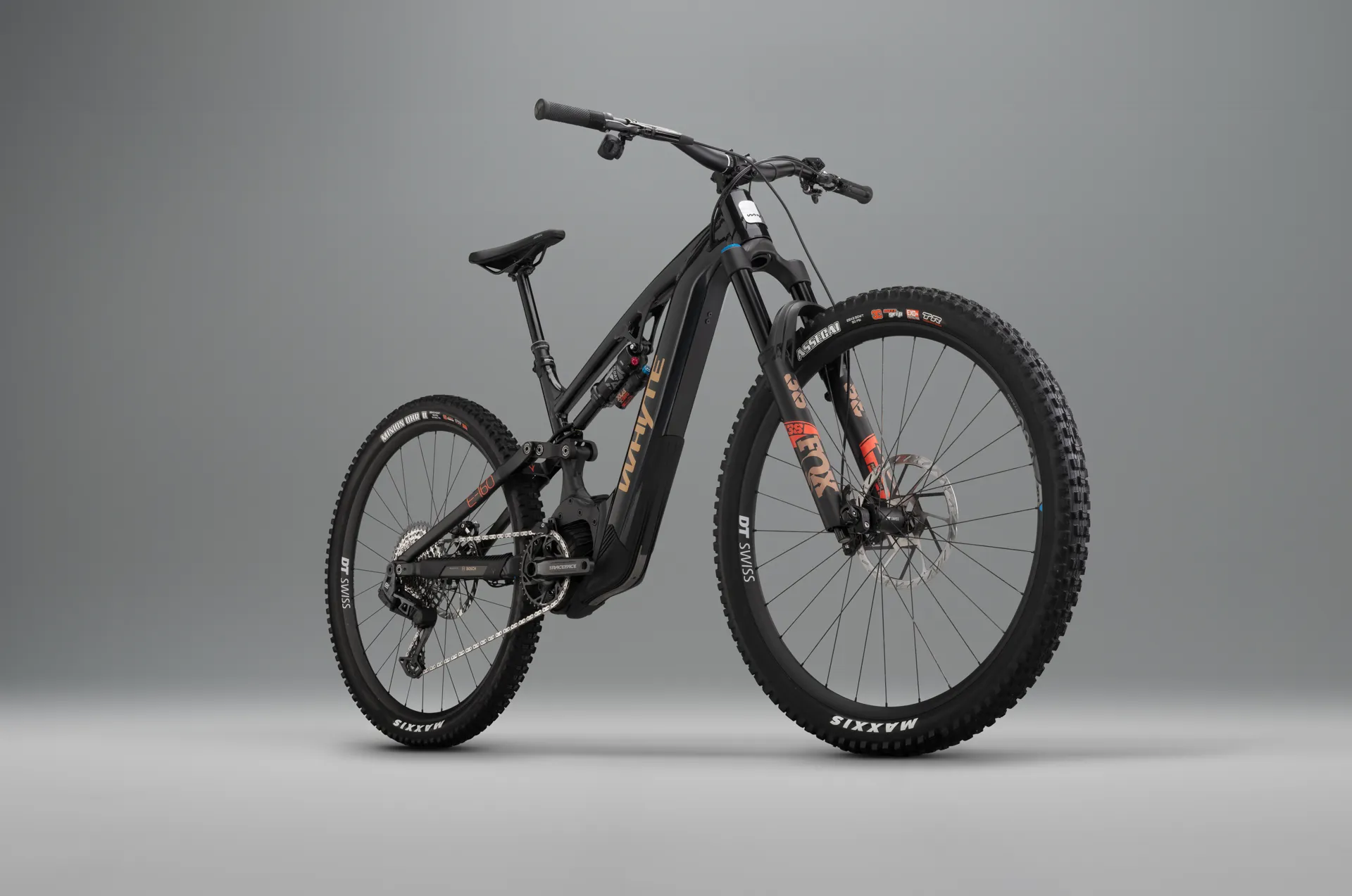

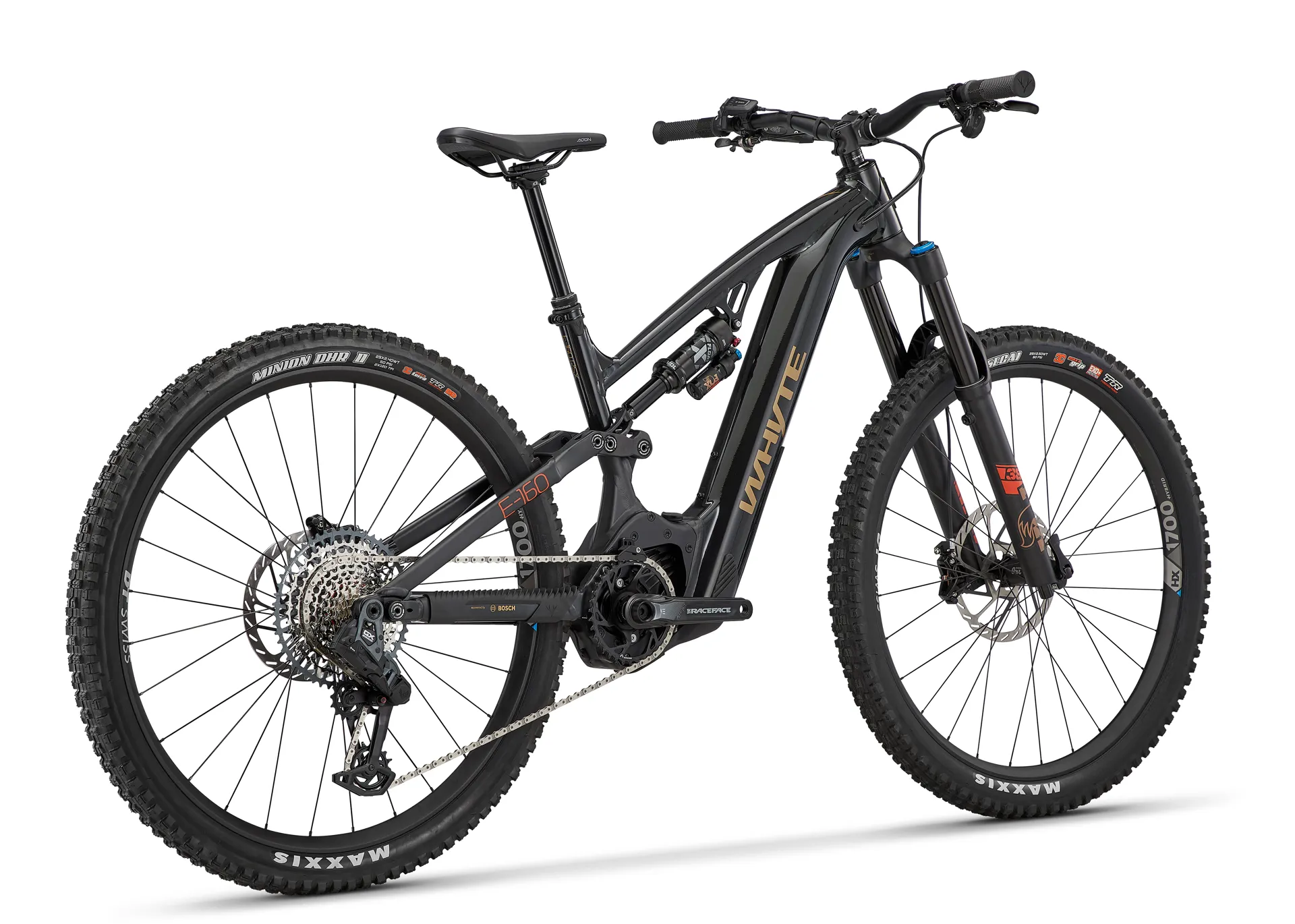

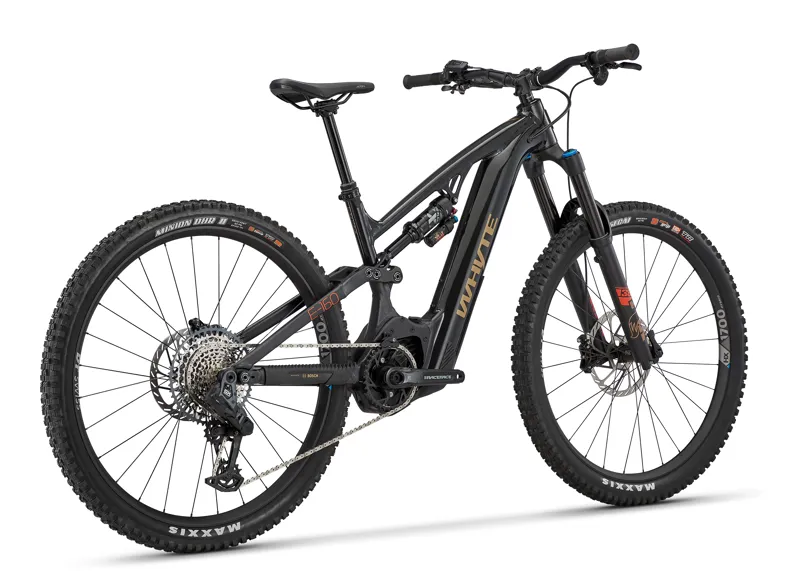

Whyte E-160 RSX 29er V2 Trail Electric Mountain Bike in Gloss Black

£4,939.00 £6,999.00 29% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Whyte E-160 RSX 29er V2 Trail Electric Mountain Bike in Gloss Black

Season:2024

Brand:Whyte

Code:24-WE160RSXGB

The ultimate E-160

Powerful, agile and balanced, the E-160 RSX is the ultimate all-rounder – not just a jack of all trades, but a master. Whether you’re thrashing the hills, racing e-enduro between the tapes or having a blast on back-country singletrack, E-160 RSX is engineered to give you the confidence to push the envelope, everywhere.

Highlights

  • Optimised low centre of gravity gives you exceptional handling.
  • 160mm front + 155mm rear suspension travel is capable for everything.
  • Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
  • Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and reliability.
  • 750Wh battery gives you the range to ride further for longer.
  • 29er wheels front and rear for balanced handling.

Ready to smash your PB

When you feel good, you ride your best. So for the E-160 RSX we’ve dressed the bike with the finest, trail-proven parts for perfect grip, feedback, and control to help do just that: SRAM GX T-Type AXS 1x12 wireless electronic gearing, DT Swiss wheels, Maxxis tyres, Whyte custom-tuned Fox Performance Elite suspension, SRAM Code RSX brakes, Crankbrothers Highline dropper post, and more – all combined and tuned with the singular focus of inspiring your best, every ride.

Confidence on any terrain

Our Total Geometry approach gives the E-160 RSX a generous reach, reassuring head angle and short offset fork, making it the most confidence-inspiring, nimble e-bike we’ve ever made. We’ve also given the E-160 RSX a rock-bottom centre of gravity by optimising the distribution of the battery and motor mass within the chassis. So you can expect exceptional cornering agility and a planted feel on even the choppiest terrain. You can also adjust the bike's geometry using its Shape.It Link ‘flip-chip’ (switchable from the stock 'High' setting to 'Low' to slacken the bike out by 0.6 degrees and lower the bottom bracket by 8mm) for even more gravity-focused handling.

Engineered for life

We’ve engineered the E-160 RSX not just to perform today but for every day you want to ride it – for years to come. Everything from making the day-to-day tasks simple and easy – like hassle-free battery installation/removal and in-the-bike-charging – to standing behind you for the long haul with the best rider support out there, four-year extended frame warranty and our lifetime warranty on bearings for total peace of mind. Because when a bike is this good, you’ll want to ride it as much as possible.

Smartly connected

With the Bosch Smart System – which links up the E-160 RSX’s bar-mounted LED Remote, battery and motor via the companion 'eBike Flow' app – you can have even more information at your fingertips to manage, tailor and personalise your bike just how you want: tune the motor support levels; keep track of your bike’s performance and battery consumption; plan and navigate routes; keep your software up to date. And much, much more.
Technical Information
eBike Motor:Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+, that allows you to focus on riding whilst being economic on power usage, and eMTB mode.

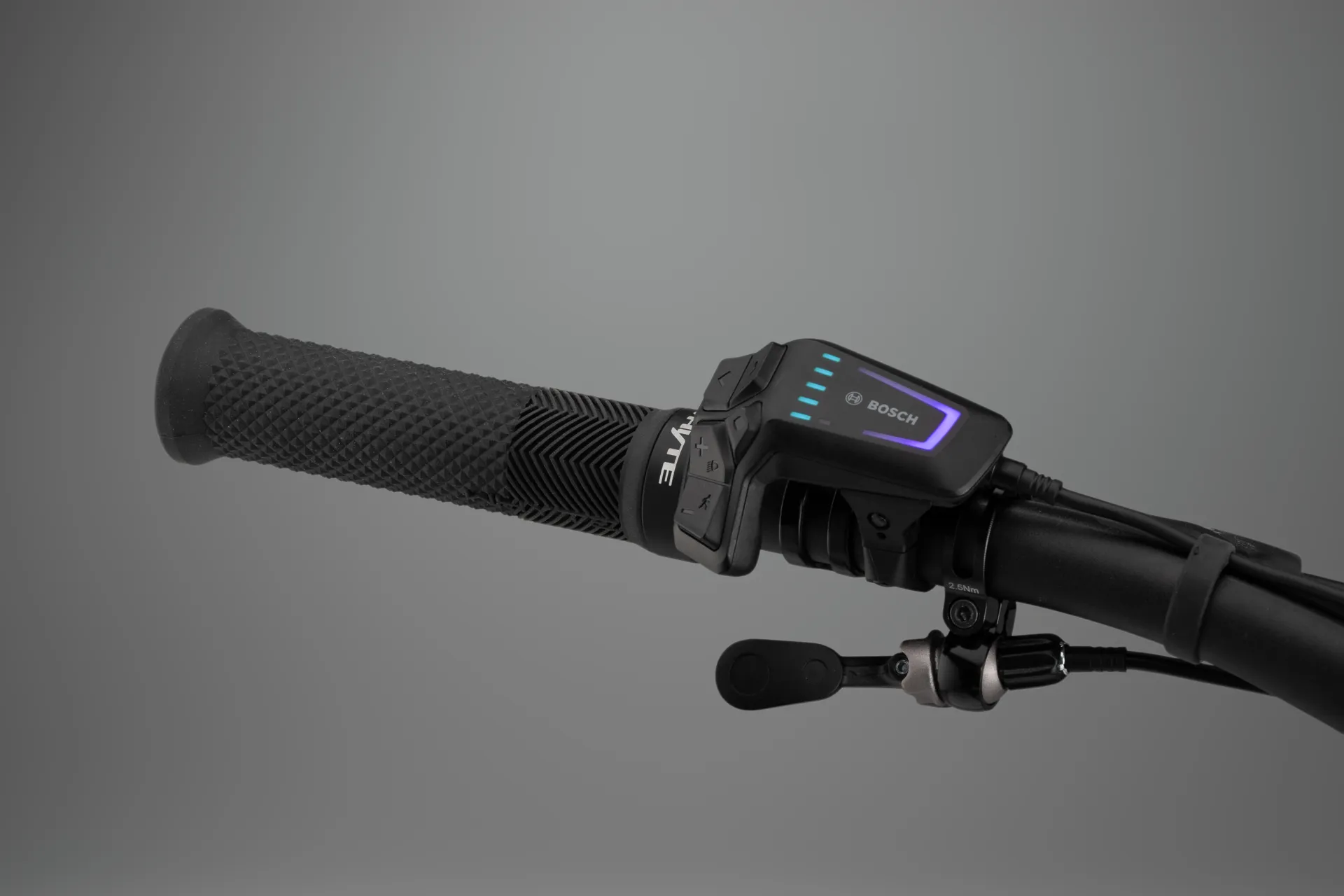

eBike Display:Bosch LED Remote allows for easy mode use and key charge and power mode visibility as you ride, and also connects to Bosch's eBike Flow smartphone app to give you even more insight and control at your fingertips.
eBike Battery:Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge. Supplied with Bosch's 4A Compact Charger.
eBike Battery Charger:Charger 4A (230V)
Colour:Gloss orange with matt black

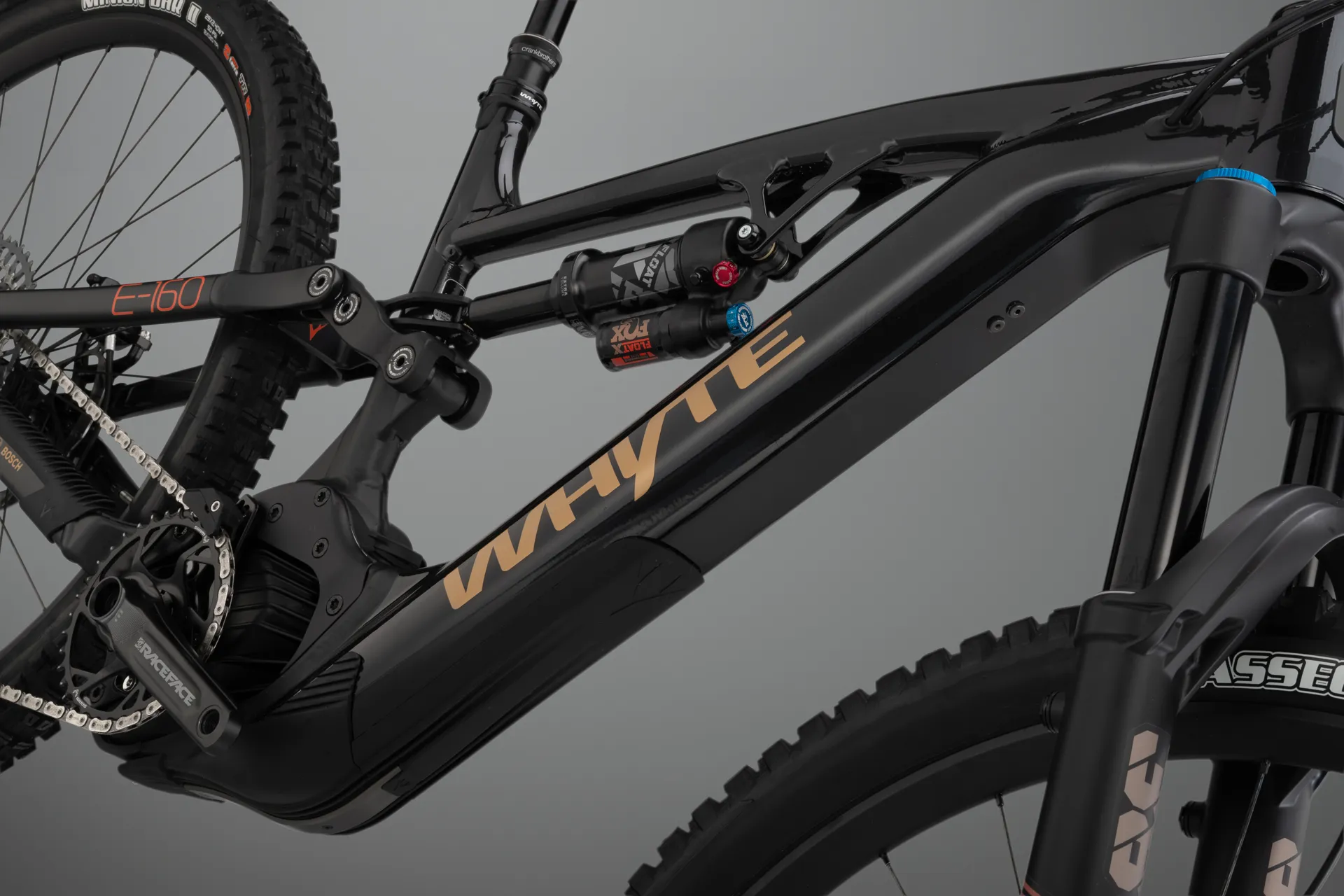

Frame:6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
Fork:Fox Float 38 Performance Elite 29in, 160mm travel, 44mm offset with Grip 2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle

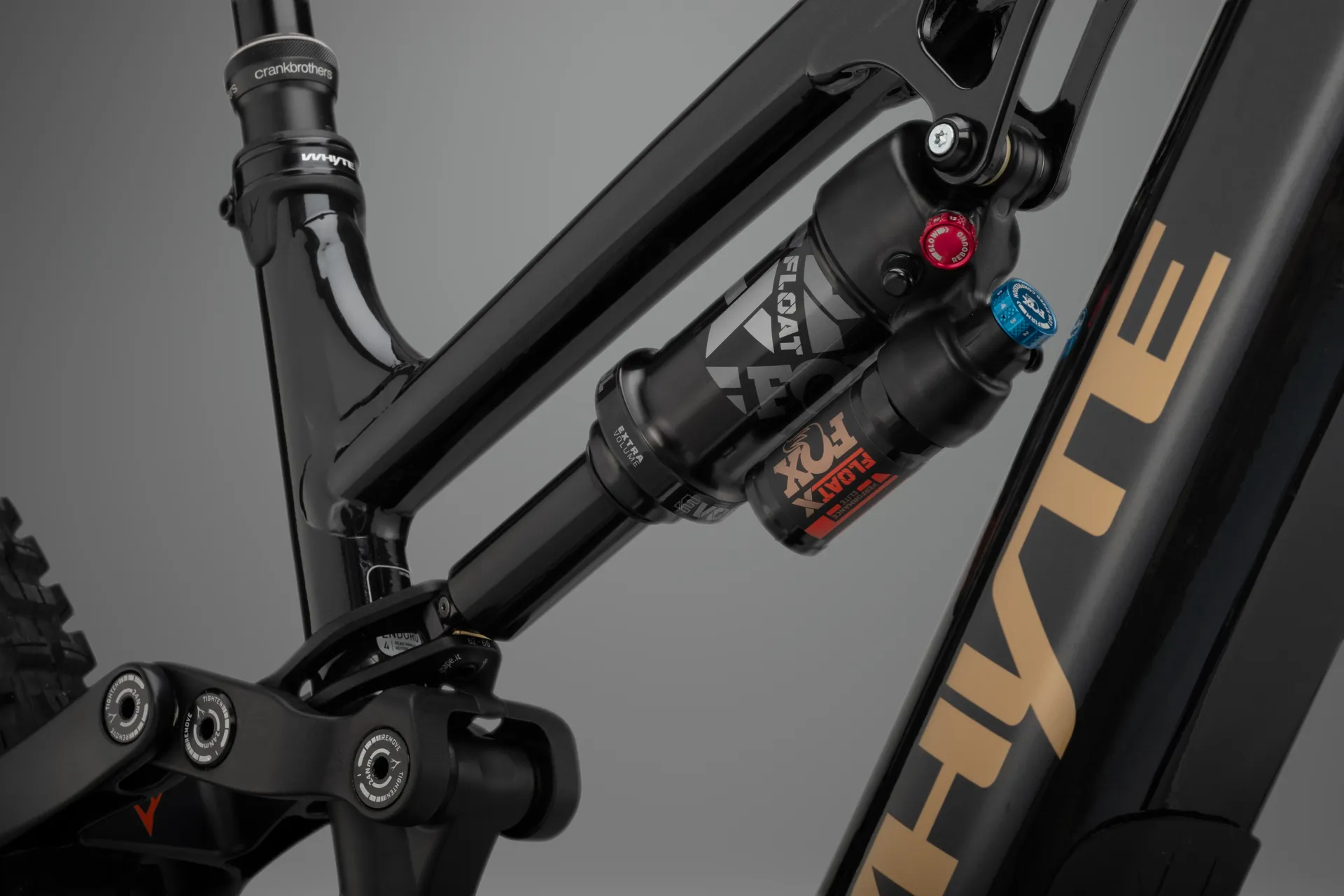

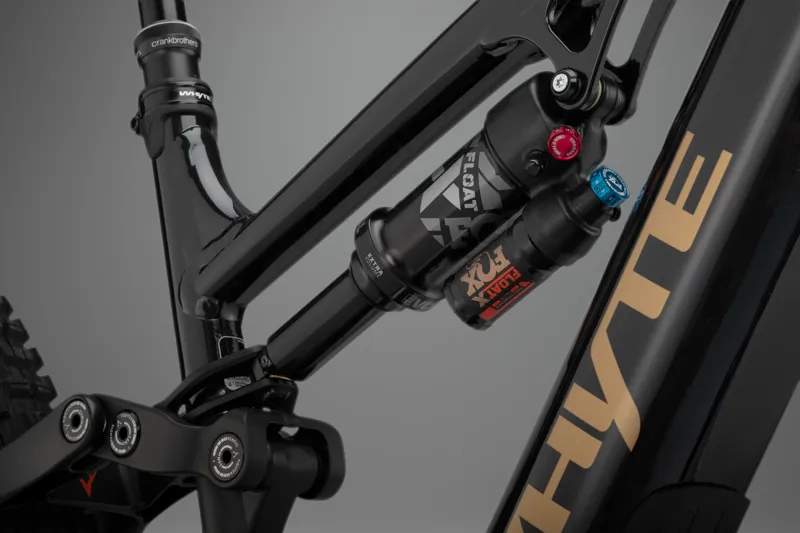

Rear shock:Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte
Headset:FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings
Rear hub:DT Swiss 350, 24T hardened steel ratchet, six bolt, 12mm x 148mm Boost spacing
Front hub:DT Swiss 350, 15mm x 110mm Boost spacing, six bolt
Spokes:DT Swiss Hybrid straight pull
Rims:DT HX 1700 alloy, hooked 30mm internal width
Tyre:Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear
Shift levers:SRAM AXS Pod, two button MMX, 12 speed
Front mech:N/A
Rear mech:SRAM GX T-Type AXS, 12 speed
Cassette:SRAM XS-1275 Eagle, 10-52T, 12 speed
Chain:SRAM GX T-Type Eagle, 12 speed
Crankset:Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black
Bottom bracket:N/A
Seatpost:Crank Brothers HighLine 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever
Saddle:Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Handlebar:Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Stem:Whyte Enduro, 35mm extension, 35mm bar bore
Grips:Whyte Enduro lock-on
Brakes front:SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor
Brakes rear:SRAM Code RSC, four piston hydraulic with sintered metal pads, 200mm diameter disc rotor
Brake levers:SRAM Code RSC, MMX
Pedals:None
Weight:26.3kg (size M)
Sizing Information
MLXL
5’6″ – 5’10”5’10” – 6’2″6’2″ – 6’6″
168 – 178 cm178 – 188 cm188 – 198 cm
Reach: 455mm
Stack: 631.5mm
Reach: 483mm
Stack: 645.1mm
Reach: 510mm
Stack: 658.6mm
